Deprecated Options¶

Klipper occasionally deprecates configuration options as the firmware evolves. When this happens, Klipper will display a warning message during startup, indicating that your printer.cfg contains outdated options that need to be updated.

Below you can find a list of commonly encountered deprecated options along with step-by-step instructions on how to fix them. For a complete list of all configuration changes, refer to the official Klipper Configuration Changes documentation.

Removal of relative_reference_index¶

The relative_reference_index option has been deprecated and superseded by the zero_reference_position option. Refer to the Bed Mesh Documentation for details on how to update the configuration. With this deprecation the RELATIVE_REFERENCE_INDEX is no longer available as a parameter for the BED_MESH_CALIBRATE G-Code command.

Source

Removal of default_parameter_ for G-Code macros.¶

In the past, default parameters for G-Code macros were defined like so:

[gcode_macro PRINT_START]
default_parameter_EXTRUDER: 230
gcode:
  ...

This would define a macro called PRINT_START that can be called with an EXTRUDER parameter like so: PRINT_START EXTRUDER=200. If no value is passed for EXTRUDER the default value of 230 is used. This style of default parameters has been deprecated. Instead, define your macro like so:

[gcode_macro PRINT_START]
gcode:
  {% set EXTRUDER_TEMP = params.EXTRUDER|default(230)|int %}

Take note of the following important aspects:

• Parameters passed to G-Code macros are stored in the params object. So if your macro is called with VALUE=50, params.VALUE will contain the value 50. After the deprecation, only the params object will contain these values.

• Make sure to name your "set variable" something else as the name of the variable in the params object (see how I used EXTRUDER_TEMP for the "set variable" and EXTRUDER for the actual macro parameter above) to avoid confusion and possible parsing errors.

• If you want to pass a default, add |default(<default value>) to the end of the params variable (see above, where my default value is 10).

• To ensure that EXTRUDER_TEMP will have an integer value, add |int to the end of the command, to turn passed parameters (if they exist) and the default into an integer. Depending on what kind of parameter you're passing, there are |int |float |bool or |string converters available. Make sure that you convert to int if you want to compare the values in your G-Code macro.

Removal of step_distance¶

step_distance describes the distance covered by a certain axis with 1 stepper (micro-)step. The downside of this parameter (and one of the reasons for its removal) is that if one were to change the microstepping of a stepper, the step_distance changes as well. Klipper therefore removed the step_distance parameter in favor of rotation_distance and full_steps_per_rotation. These two parameters are unaffected by microstepping, and can be easily determined by inspecting the used hardware.

Perform the following steps to convert your config:

• comment out the old step_distance parameter

• add three new parameters:

  • full_steps_per_rotation this is 400 for 0.9 degree stepper motors and 200 for 1.8 degree stepper motors.

  • rotation_distance this can be determined either according to hardware, or by converting the old step_distance using math.

  • gear_ratio can additionally be used to describe an axis that uses a reduction gear (like the Voron-2 Z axis)

  • The easiest way to obtain the correct values for rotation_distance and gear_ratio is to check the official Voron printer Github repositories. All example configs have been updated to include the correct values for the new parameters. Keep in mind that you'll still have to calibrate your extruder steps/mm if you choose to copy the values for the extruder. Instructions on how to convert and recalibrate the extruder values can be found here.

  • The formulas to convert step_distance to rotation distance can be found here

  • Guidance on how to inspect your hardware to determine your conversion distance can be found here. Make sure to also consider any reduction gearing, if applicable, by checking this section as well.

  • For every stepper, except your extruder, you should end up with even numbers (e.g. 40 instead of 39.9683).

Removal of pin_map¶

For Voron printers, this is only relevant if you're running an Arduino based controller board and use pins named similar to ar19 etc. These pin declarations are no longer valid and need to be replaced with their hardware pin identifiers. To find the appropriate hardware pin identifier perform a google image search for your board plus pinout. E.g.:

arduino mega 2560 pinout

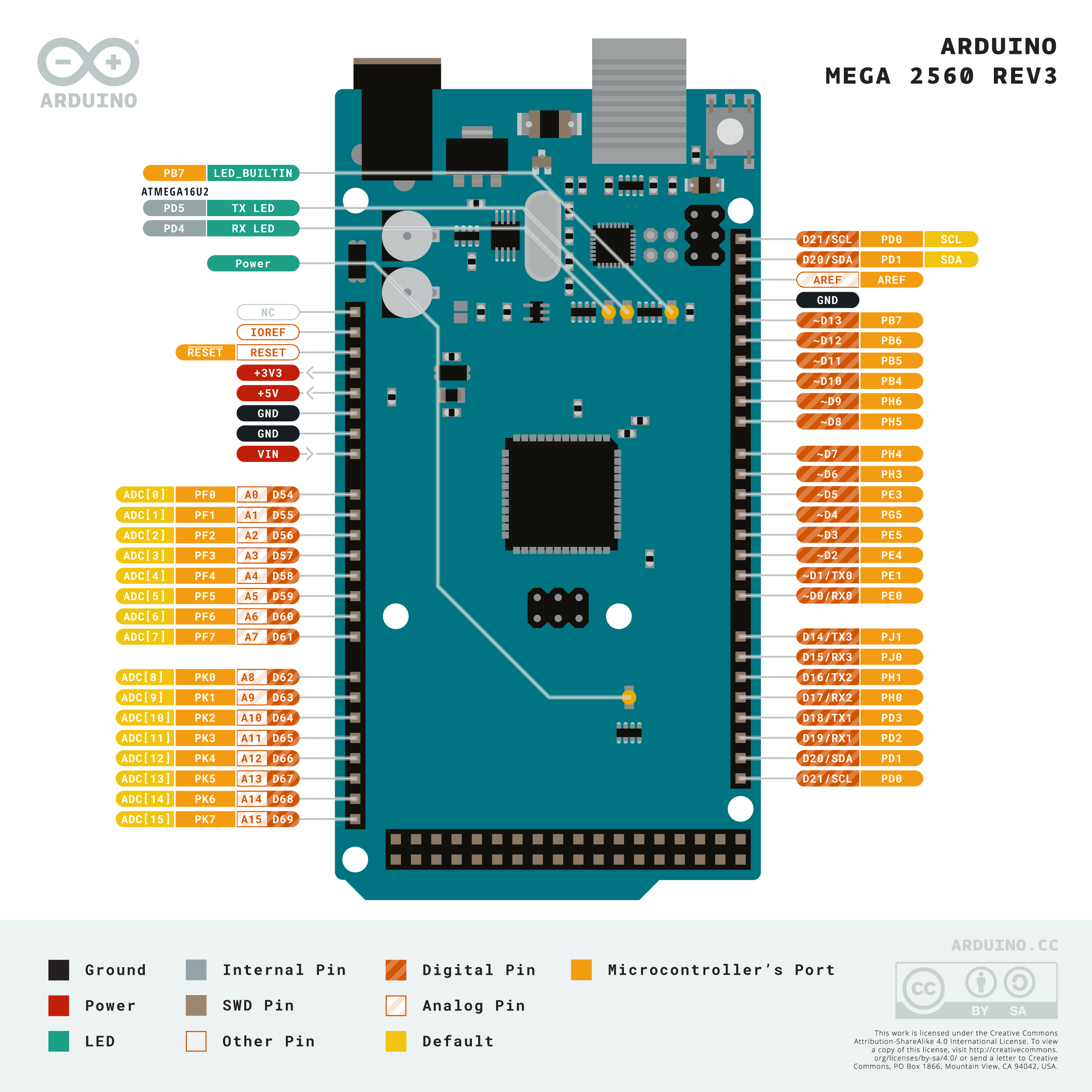

which will yield images such as this one:

There, find the pin you're trying to replace. The old pin maps use the digital number of the pin. For example, if your old pin was ar10, looking at the image you will find that the D10 pin corresponds to PB4. Replace all pins in your config accordingly, and finally remove the pin_map: configuration parameter from your mcu section.

Alternatively, you can copy an appropriate [board_pins] block from this location to your config. If you're using multiple Arduinos, make sure to add the appropriate mcu to each block like so:

[board_pins arduino-mega]
mcu: mcu

Removal of max_accel_to_decel¶

The max_accel_to_decel option has been deprecated and superseded by the minimum_cruise_ratio option. Refer to the printer section documentation for details on how to update the configuration. The max_accel_to_decel can be deleted in most cases, as the default value of minimum_cruise_ratio should fit for most of the printers.
